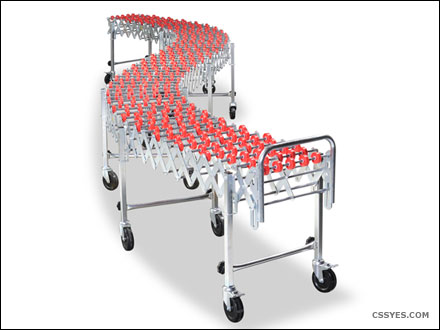

NestaFlex 226 Red Nylon Skate Wheel

This is our NestaFlex 226 red nylon skate wheel expandable conveyor with nylon bushing for high-impact, short conveyors runs. Designed to expand, contract and move easily, the 226 model with nylon wheels is a self tracking, gravity skate wheel conveyor that has a per liner foot capacity of 226 pounds. This unit is engineered to handle multi-sized cartons in low to medium volume applications.

Description

NestaFlex 226 Red Nylon Skate Wheel Conveyor

The all steel construction provides unmatched structural integrity, whether the conveyor is extended, compacted or configured in simple or compound curves. Adjustable inner legs vary height to achieve gravity flow. This product is the choice for use in retail store level applications, packaging areas, assembly lines and in low volume shipping and receiving departments or inside the warehouse. Please consult our how to order expandable conveyor page to get familiar with the main factors involving ordering the NestaFlex 226 Red Nylon.

Red Nylon Skate Wheel Conveyor

This is our NestaFlex 226 red nylon skate wheel expandable conveyor with nylon bushing for high-impact, short conveyors runs. Designed to expand, contract and move easily, the 226 model with nylon wheels is a self tracking, gravity skate wheel conveyor that has a per liner foot capacity of 226 pounds. This unit is engineered to handle multi-sized cartons in low to medium volume applications.
Red-Nylon-Skate-Wheels-001-LG
Available in 14″, 18″ and 24″ widths. 2-3 week lead time.

14″ Wide Models

nestaflex 226 red 14 wide

18″ Wide Models

nestaflex 226 red 18 wide

24″ Wide Models

nestaflex 226 red 24 wide

Standard Features and Options:

  • All steel construction
  • Available in 14″, 18″ and 24″ widths
  • Lengths can be tailored to your needs
  • Standard adjustable heights from 28″ to 44″
  • Other height adjustments available
  • Couplers are standard
  • Zinc-plated, heavy-duty leg supports are made from 1-1/8″ square steel tubing
  • Leg supports feature a welded cross member
  • Conveyor side links are made from 11-gauge steel
  • Standard heavy-duty 5″ x 1-1/2″ swivel casters
  • Steel foot brake on both ends
  • Skate wheel axles are 5/16″ diameter
  • Standard axle centers are 5-1/4″, 4″ and 3″ to handle small cartons.
  • Other options are available
  • Optional universal connectors are available to couple to other extendable conveyor brands
  • Retractable package stop serves as an ergonomic handle
  • Unidirectional side guards available for special product needs
  • Optional impact section available for receiving application
  • Optional swing stick available for dock less receiving applications
  • 18-month factory warranty

Specifications:

nestaflex specifications
* 8″ Skatewheel option available on 14″ wide models ** 10″ Skatewheel option available on 24″ models
