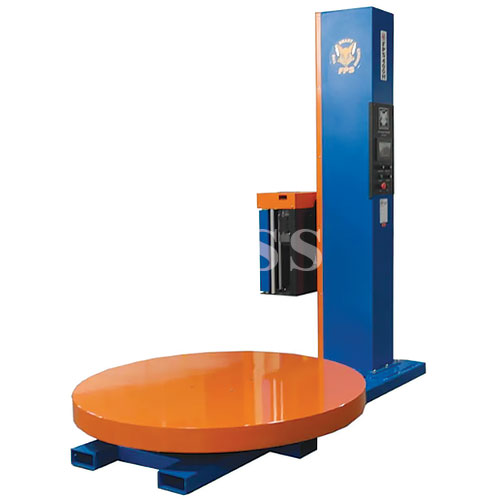

High Profile Semi-Auto Pallet Wrapping Machine
Fox Packaging Services FPS 400H Semi-Automatic High-Profile Pallet Wrapper
Dramatically increase productivity and efficiency in your warehouse today with the Fox FPS 400H High Profile Semi-Automatic Turntable Pallet Wrapper! Semi-automatic stretch pallet wrapper turntables are a lower cost alternative to fully automatic stretch pallet wrappers and faster than manually operated models. It is no longer necessary for someone to walk around a load numerous times to manually wrap your product. This semi-automatic pallet wrapping machine is perfect for medium volume applications (from 1 to 40 loads per hour) and is a great first machine.
Heavy-Duty Turntable with Easy to Program Controls
The FPS 400H’s turntable features a ¾ HP AC motor along with a Delta 1 HP VFD variable speed drive at speeds ranging from 0 – 15 RPM pushed through a 20:1 gearbox. 4 heavy duty swivel casters keep the load of up to 5000 pounds balanced and spinning free and true. The turntable can handle load sizes up to 55″ long by 55″wide with an 80” Diagonal. The wrapper has a tower with a vertical height capacity up to 82” tall.
A user-friendly flush mount Delta 7” full color touch screen PLC controller includes options for preset and password protected lockout along with built-in with auto home alignment. The FPS 400H includes 4 new standard wrap programs built in: Standard Wrap Cycle, Standard Wrap Cycle w/Top Cover Pause, Bottom Wraps First, and Wrap Upwards Only. Additionally, a Banding Cycle Pause feature is included. Simply hitting the start button mid cycle will pause wrapping to allow for uneven or odd-shaped loads. Additional controls include nine separate top/bottom wrap and film height selectors, a cycle counter, manual carriage raise/lower control, and a large emergency push button power on/off switch with indicator light.
Powerful Prestretch Carriage with Built-in Film Cutter
The carriage lift sports a fully guarded heavy-duty #50 ANSI roller chain with a ¾ HP AC motor and a Delta 1 HP VFD variable speed drive routed through a 60:1 gearbox. Film delivery comes by way of a HURRICANE THREAD© 20″ prestretch film delivery system. The FPS 400H comes set from the factory at 200% film stretch with 50%-250% available upon request. The carriage is designed to easily thread film for quick reloads and utilizes a handy triple beam eye that will automatically detect the top of your load height as well as linear analog proximity sensor film feed speed control. It accepts 20” film with a 3” core. Lastly, the FPS 400H has a patented built-in end of cycle film cutter at no extra cost.
Fox FPS 400H High Profile Turntable Pallet Wrappers are warrantied against parts defects for a period of three (3) years, and five (5) years on workmanship if installed, maintained and used in accordance with factory specifications. This machine offers low maintenance and its fuse panel is easy to access.
Power requirements are 115VAC/15A/60Hz – simply plug and play.
Efficient, Time-Saving Warehouse Pallet Wrapper
A pallet wrapper offers warehouse operators a great alternative to hand wrapping loads. Hand wrapping is at best inconsistent and at worst dangerous, causing many serious back injuries in the workplace every year. In addition to helping preserve employee health and mitigating downtime, pallet wrapping machines can help save time and money, forgoing the need for extensive training and eliminating wasteful excess caused by hand wrapping.
Pallet wrapping your product is the last operation you perform and the first impression you make on your customer as a supplier. Presenting a professionally wrapped, undamaged and solid product to your customer is vitally important in delivering quality every time.
