DEA Controlled Substance Drug Storage Cages

WireCrafters

WireCrafter’s DEA controlled substance drug storage cages feature self-locking and self-closing doors, ceiling panels made from 10-gauge wire, and mesh walls.

REQUEST FOR QUOTE

Description

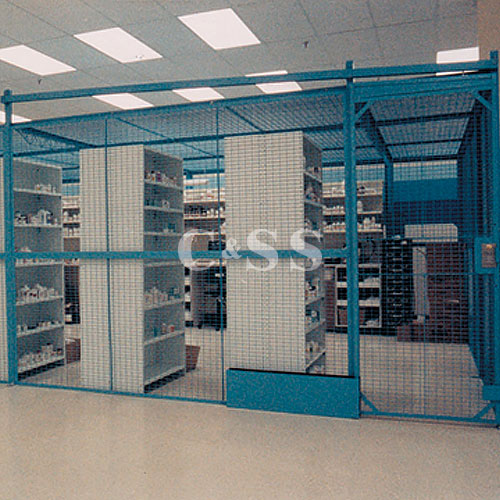

DEA Controlled Substance Drug Storage Cages

WireCrafters manufactures wire partitions for industrial and commercial purposes such as DEA controlled substance drug storage cages. A wire partition is a modular system constructed from steel that is used for separation, security, and safety. Woven or welded mesh gets welded on the inside of angle frames in order to create a partition panel. Each mesh partition gets bolted to a steel post in order to create a rigid and strong square enclosure or wall.

DEA Controlled Substance Drug Storage Cages Brochure

When the systems are properly installed, they are used for DEA controlled substance drug storage cages. The WireCrafters 840 Partitions fulfill all of the requirements set forth by the Drug Enforcement Administration for physical security in relation to controlled substances. Drug warehouses, record storage, distribution centers, medical facilities, pharmaceutical companies, and pharmacies are just a few other areas in which these wire partitions can be used in an application related to drug storage.

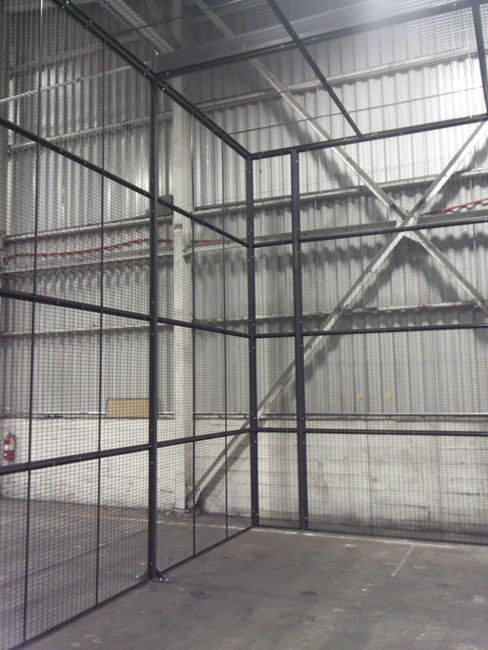

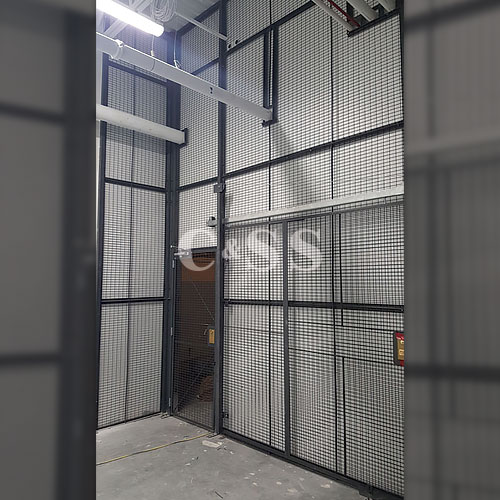

WireCrafters Pharmaceutical Tall Drug Storage Cage

Features of DEA Storage Cages

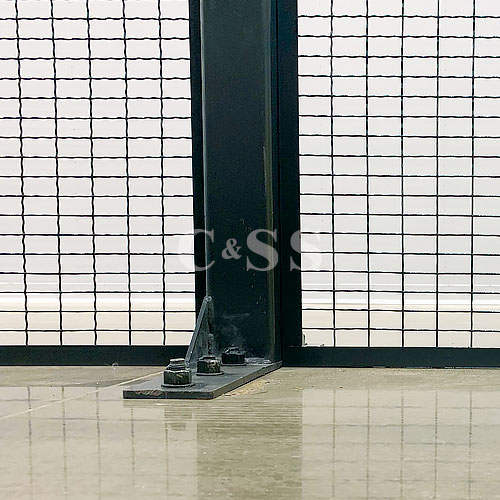

WireCrafter’s DEA controlled substance drug storage cages feature self-locking and self-closing doors, ceiling panels made from 10-gauge wire, and mesh walls. There are 2″ support posts made from steel that are around 10′ apart. Base plates are welded onto these steel posts lagging purposes. Each wall of the storage cages has a horizontal reinforcement around every 5′ in separation. Panel mounts are flush with the floor and use 3/8″ heavy hardware which isn’t accessible from the outside of the cage. A majority of WireCrafters’ panels can be stacked to any height and clear ceilings at a height of 30′ and below.

WireCrafters Cages Meet Requirements Set by the DEA

All drug storage systems have to meet a series of requirements set forth by the DEA. WireCrafters can offer a wide range of custom and standard storage locking options in order to meet these requirements. There is also an available line of doors that are able to close on their own. The standard panels manufactured by WireCrafters measure a minimum of 4 to 5 feet in height, 10 feet in length, and are constructed from 10-gauge wire. Each frame of the wire panels meet all requirements for reinforcement at every 60 inches. Our standard posts measure square and come with base plates to be securely anchored to the floor. The lag bolts have to be brazed or pinned once they are installed. The WireCrafters drug storage units use similar panels in ceilings and walls. Furthermore, these secured systems are so robust that users can stack the panels to reach the height of nearly any building.

Flexible Configurations

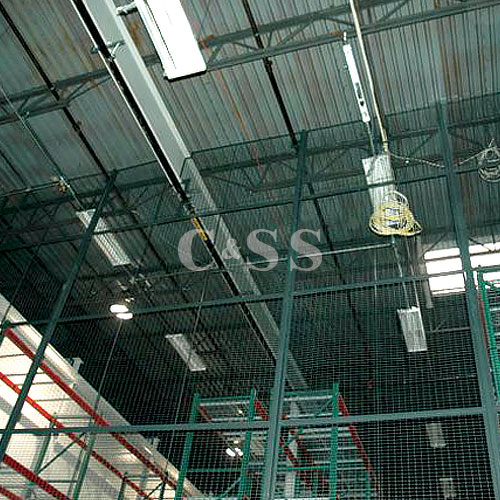

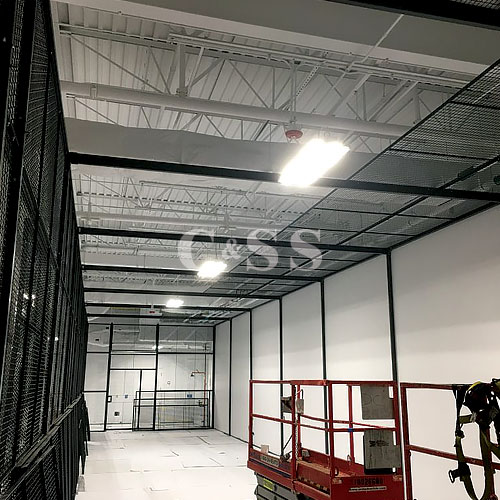

The impressive flexibility of these partitions has made it possible to build DEA controlled substance cages of any shape or size. The DEA cages can be constructed with a free-spanning ceiling that reaches up to 30′ in height. With vertical supports, these ceilings can reach even greater heights. The panels can be stacked to reach any height as well. This allows the DEA cages to be built into a facility’s existing ceiling and walls. Each of our hinge and slide doors has the ability to be automated to self-close. Access can also be granted with the swipe of a card or through the input of a code.

Industry Experience

WireCrafters has been providing enclosures to pharmaceutical and drug companies for many years. We are experts in the field that have a history of making DEA-approved products that can securely house controlled substances.

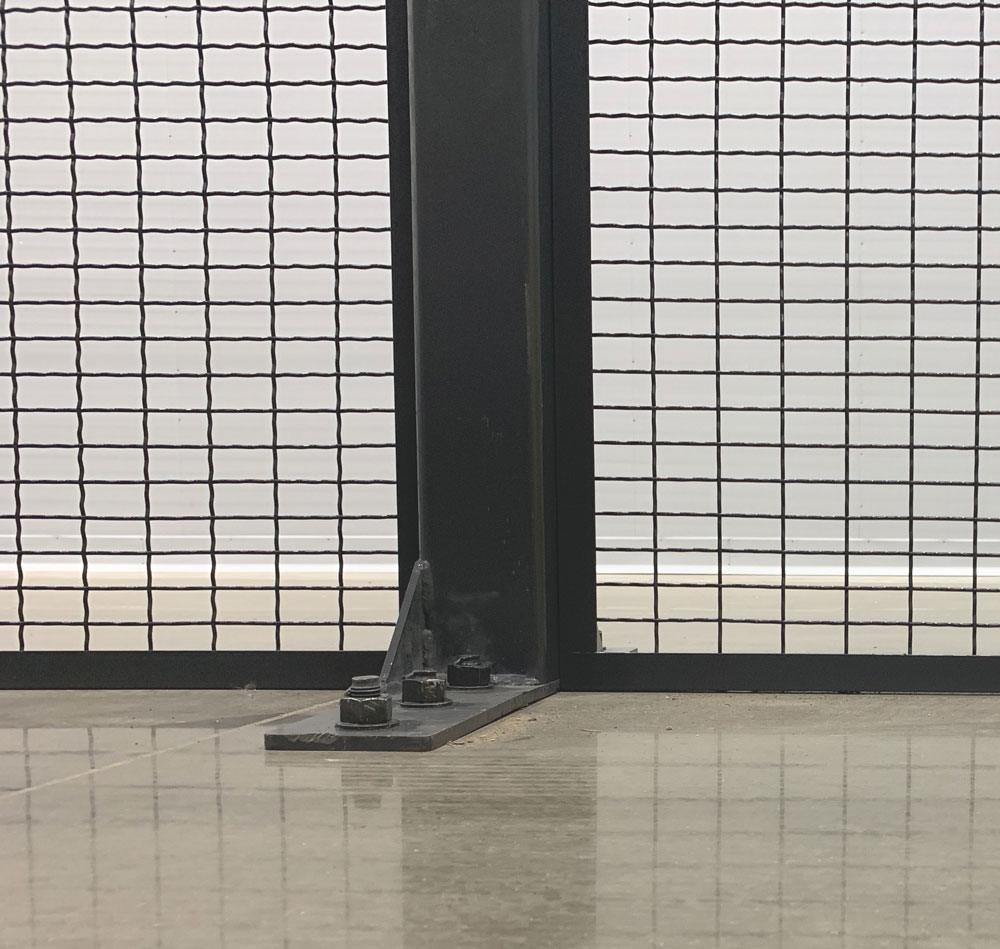

WireCrafters DEA Cages Specs

Key Features:

  • Self-locking and self-closing doors
  • Ceiling and wall panels made from 10-gauge wire
  • Steel posts
  • Posts with welded base plates
  • Posts aren’t more than 10 feet apart
  • Pane mounts are flush with the floor
  • Panels can be stacked to reach any height

Additional System Components:

Secured Wine Storage with Controlled Storage Lockers

As experts in secured storage solutions, product separation, custom fit designs and absolute efficiency, Conveyor & Storage Solutions, Inc. is the partner you need to get your job done right the first time. Along with decades of experience, C&SS is a certified WireCrafters Premier Distributor, trained with their most popular items for lightning quick turnaround and getting you the best prices for all your material handling needs. Discover more in our Case Study: Wine Storage with Secure Wire Lockers of a recent project we completed with WireCrafters storage lockers.

Additional information

Manufacturer

Wirecrafters

Shipping Points

Kentucky

Download

Installation Instructions
