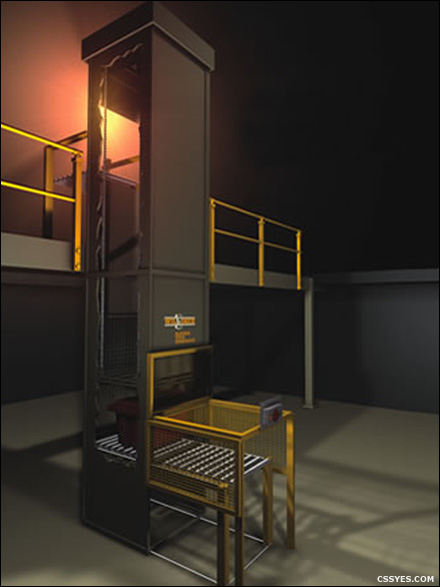

Freight Elevator Conveyor Integration

Freight elevators (VRCs) are cost effective, reliable, safe, and efficient. Our experienced team can provide you with the VRC System that will integrate with your specific application requirements. Whether you are moving extra large loads, paper rolls, pallet loads, totes or boxes, we have the solution that you need.

Description

Freight Elevator Conveyor Integration Features:

Freight elevator conveyor integration includes mezzanine loading, queuing, or sortation operations. ‘Up and Over’ operations, having to move horizontally conveyed loads up and over traffic aisles. Kitting, picking, or order fulfillment operations on multiple levels. Multi-story building complexes with conveyor systems at different elevations.

  • Lifting Speeds: 40 to 110 fpm (with ‘soft-start’ and ‘soft-stop’ motor control)
  • Load Sizes: Up to 2 ft.- 6 inches wide x 3 ft. long x 3 ft. high
  • Carriage Platform: An open framing system supports the carriage conveyor section
  • Loading / Unloading: “C” or “Z” loading patterns
  • Overload/VRC jam protection
  • Carriage is guided between (4) four structural tube steel members that act as the frame for the perimeter safety enclosure
  • Footprint: Approx. 3 ft. wide by 4 ft. long (not including control panels or in-feed and discharge conveyor sections)
  • Full height perimeter guarding is integral to the VRC system
  • Interlocked access door for cleaning and maintenance
  • Unit accesses a lower level and one or more stops above ground
  • Equipped with 3-phase TEFC brake-motors with a fast acting, spring-set electrical brake
  • Helical gear reducer transfers motion through a common drive shaft, sprockets, and dual-roller lifting chains
  • Unit is partially pre-wired to reduce installation time and cost. The main UL listed control panel is integrated into the machine. The standard control panel is rated NEMA 1 and is labeled UL-508A
  • System includes one section of in-feed conveyor, one section of carriage mounted conveyor, and one section of discharge conveyor
  • Conveyors are powered roller type. Horizontal speeds: 30 to 110 fpm.

Additional information

Manufacturer

Wildeck

Shipping Points

Wisconsin
