Modular VRC

Our variety of mechanical lifts are well suited for multi-level applications that demand faster speeds and high cycle rates. The reliable chain drive lifting system has been designed for the tough duty these applications require and provides long and trouble-free service life.

Description

Modular VRC Systems

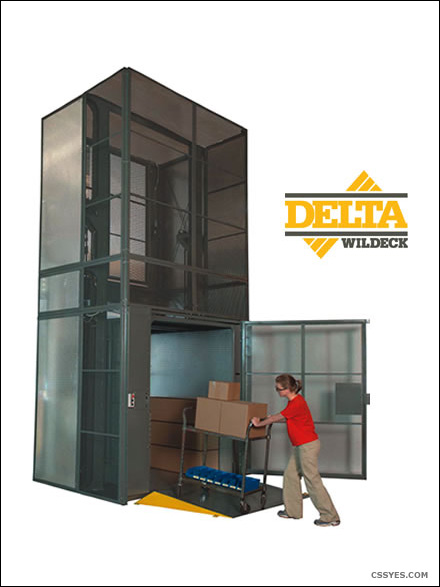

Wildeck’s Delta™ Vertical Reciprocating Conveyor (Modular VRC Systems) are a safe and reliable way to transfer your material from level to level. Large catwalk storage systems can use material lift technology to make box handling more proficient. The Delta VRC offers the lower cost of a hydraulic unit while incorporating the many benefits of a mechanical lift. The Delta ships in large sections and installs in less than a day; which minimizes costs and disruption to your operation. Wildeck’s unique and innovative Delta design provides a VRC that is not only durable and reliable, but extremely easy to maintain. When you look at a Delta VRC, you will notice Wildeck’s quality and many high value features that are designed in from the start.

Take a closer look at the standard features we include; you’ll quickly realize that mechanical VRC gives you more. With our electrical design capabilities, we can provide you with a complete customized material lift system that is either manually controlled, controlled by your conveyor controls or is fully automated controlling both the material lift and portions of your conveyor system.

Features:

  • Lift Capacity: 2,200 lb
  • Lifting Speed: 15 fpm (standard) – other speeds available
  • Platform Size: 5 ft. wide x 6 ft. long x 7 ft. high
  • Loading / Unloading: “Z” loading – standard “C” loading available
  • Gates: Single Swing Gate (standard) – other gates available
  • Overload/VRC jam protection
  • Safe, integrated, full-height perimeter guarding
  • Fully-enclosed carriage with galvanized tread plate floor and walls
  • Expanded metal roof
  • Modular construction for fast and easy ‘bolt-together’ installation
  • Fabricated by certified welders
  • Optional galvanized ‘winged’ loading ramp or pit mounted
  • Electric chain drive lift system for long service life
  • Dual roller chains for redundant safety
  • UL-508A labeled control panel
  • Fully pre-wired for ‘plug-and-play’ electrical connection
  • Momentary contact ‘Up’ and ‘Down’ push-button controls
  • Broken/slack chain protection provided by a dual-cam safety system
  • Lifting Speed: 40 fpm
  • Carriage Platform Size: 3 ft. wide x 3 ft. long x 3 ft. high (standard)
  • Light: Carriage light available
  • Loading / Unloading: “C,” “Z,” or 90 degree loading patterns
  • Overload/VRC jam protection
  • Lift heights designed to meet application requirements. Multi-level configurations available
  • Safe, redundant, and long life dual lifting chains used instead of cables
  • Fast-acting braking system provides superior positioning accuracy
  • Instantaneous overload protection
  • Continuous-duty motor, alloy steel drive shaft, and high service factor gear box provide extended service life
  • Durable, heavy gauge steel construction fabricated by AWS D1.1 Certified Welders
  • High performance wheels guide the carriage along the high strength steel structure
  • Meets all safety guidelines for vertical conveyors
  • UL-508A labeled control panel
  • Factory assembled and tested
  • Stackable, self-contained, modular design for easy shipping and fast, trouble-free installation
  • All interlocked gates, call / send stations, and safety enclosures are pre assembled and pre wired at the factory to reduce installation time
  • Custom sizes and special options are available

Additional information

Manufacturer

Wildeck

Shipping Points

Wisconsin
