Rapid Rack Industries, Inc. designs and manufactures material handling storage products for industrial, commercial, and consumer markets in the United States. The company offers bulk storage, bulk rack, record archive storage, space saver shelving, mobile aisle, and steel decking systems, as well as tire and battery racks, multi-level catwalk systems, and heavy-duty posts. It also provides work benches, carts, drawers, and other accessories. Rapid Rack products are certified made in the U.S.


Description

Single River Beam (SRB)

BS-SRB-CLOSEUP
Close up of a Single Rivet Beam (SRB).

Single Rivet Beams (SRB) are for light to medium weight industrial storage applications. Rapid Rack’s SRB are 15/16″ high, 14 gage, and can be used as left to right and front to back shelf supports.

Double Rivet Beam, Low Profile (DRBLP)

MT-DRBLP-Connection-2-large

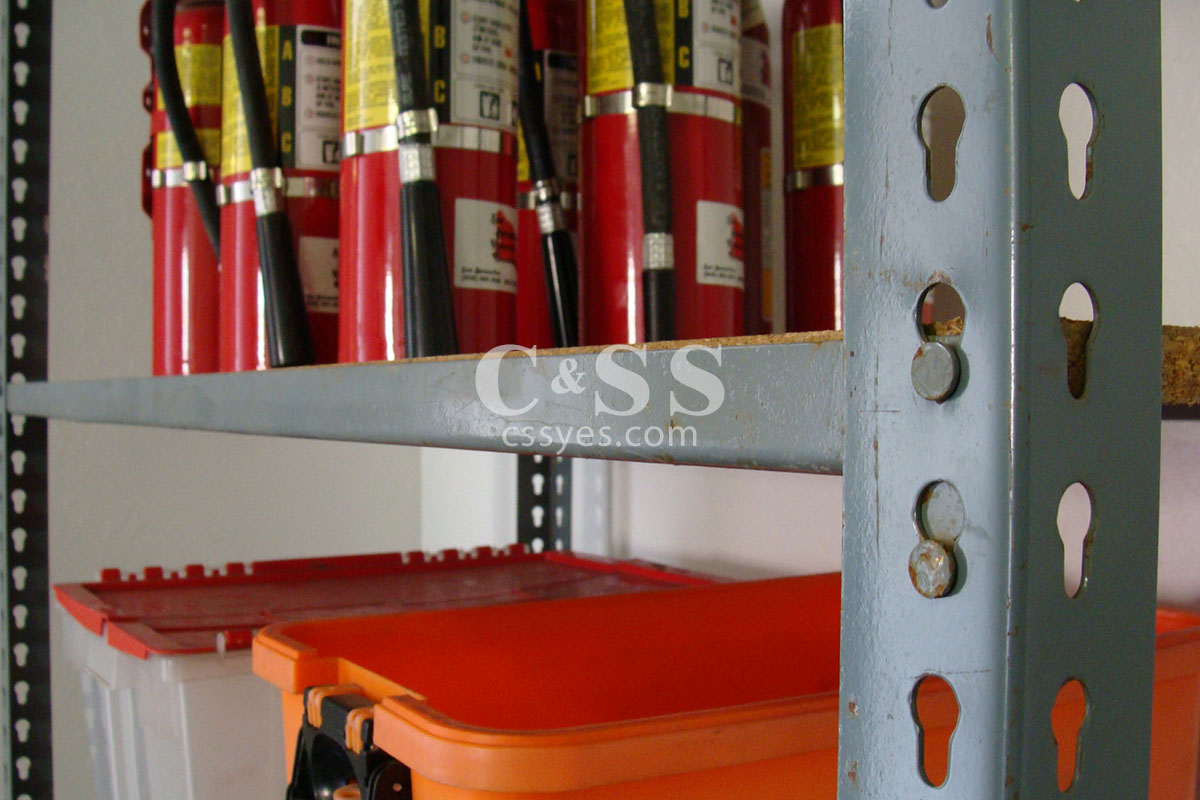

Close up of a Double Rivet Low Profile Beam (DRBLP).

Double Rivet Low Profile Beams (DRBLP) are for heavy duty industrial storage applications. Rapid Rack’s DRBLP are 1-1/8″ high, 11 gage, and can be used as left to right and front to back shelf supports.

Double Rivet ‘Z’ Beam (DRBZ)

BS-DRBZ-CLOSEUP

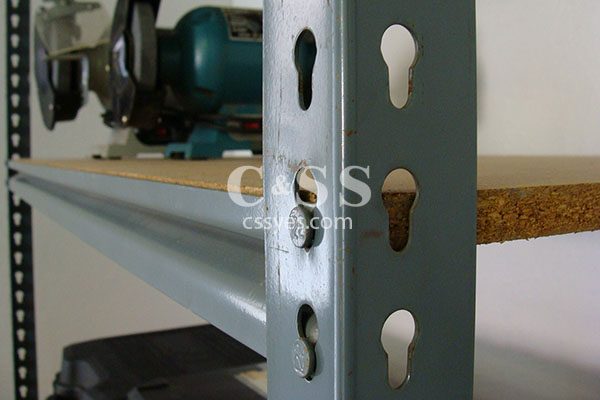

Close up of a Double Rivet ‘Z’ Beam (DRBZ).

Double Rivet ‘Z’ Beams (DRBZ) are for medium to heavy weight industrial storage applications. Rapid Rack’s DRBZ are 2-3/16″ high, 14 gage, and can be used as left to right and front to back shelf supports. Z beams protects the edges of the wood shelves.

Double Rivet ‘Z’ Beam (DRBZ) Fully Wrapped

MT-DRBZ-2-large
Close up of a Fully Wrapped Double Rivet ‘Z’ Beam (DRBZ).

Fully wrapped DRBZ storage units are used to increase the weight capacity and provide additional protection for the wood shelves.

Tie Supports (TS)

Industrial-Shelving-1-Tie-Support-large

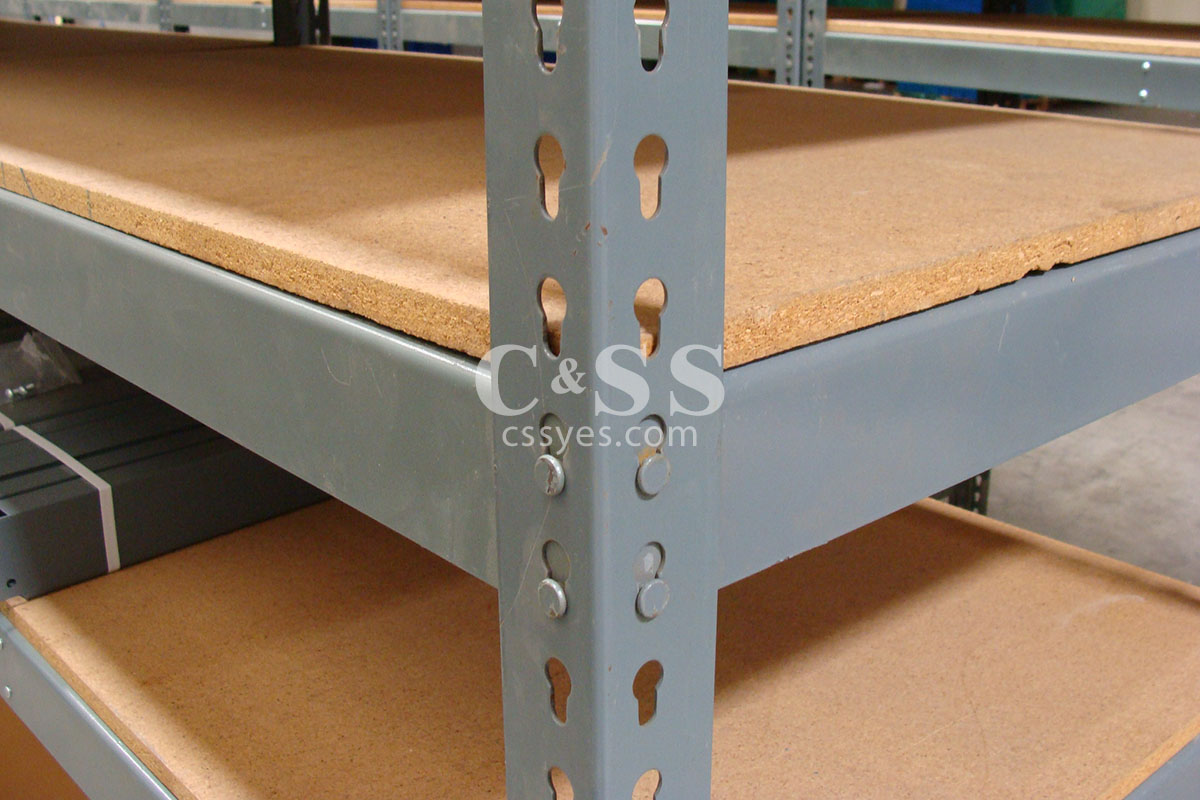

Close up of a Double Rivet Beam (DRB).

Tie supports are used to stabilize beams and add support to the decking. They bolt between DRB, DRC, or DRCHD and are used for heavy duty shelving over 24″ deep and wider than 48″. Channel Beams provide the highest capacity available for bolt less shelving. Please call for more info.

Tie Plates (TP)

Tie-Plate-1-large
Close up of a Tie Plate (TP).

Tie supports are used to stabilize beams and add support to the decking. They bolt between DRB, DRC, or DRCHD and are used for heavy duty shelving over 24″ deep and wider than 48″.

Heavy Duty Angle Post (APH)

Boltless-Shelving-Angle-Posts2
Close up of a Heavy Duty Angle Post (APH).

Heavy Duty Angle Post (APH) are used for maximum weight capacity. Rapid Rack’s APH are 1-7/8″ x 1-7/8″, 14 gage, and are punched on 1-1/2″ centers for shelf adjustment. Heavy duty angle posts can be used in mezzanine and shelf supported catwalk storage systems.

Additional information

Manufacturer

Rapid Rack
