Server Cages

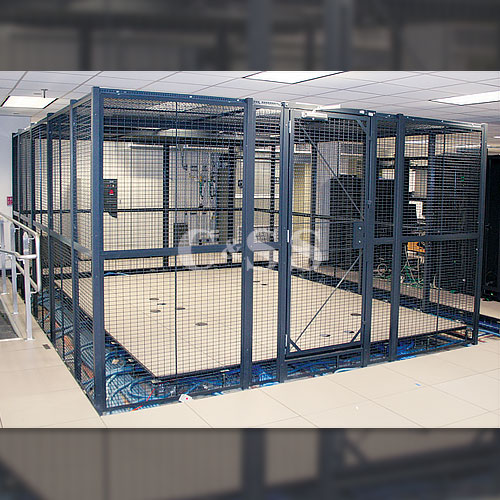

With the Style 840 Woven Wire partition system, you can separate and secure customer-specific server or network equipment without a lot of cost. These easily configurable Server Cages make it easy to divide hosting facilities as needed.



Server Cages

Our server cage design offers flexibility and high-level secured access for storing server racks. The design allows side-by-side storage, without wasting valuable space, for individual and multiple rack setups.

Server Cages Brochure

Panels in Stock

Our panels come in sizes ranging from 1′ to 10′ wide, increasing in one-foot increments. They are available in heights of 4′ and 5′. All are available for 48-hour shipping.

Easily Reconfigurable Design

The design allows you to reconfigure the panels when you need to add additional servers or when you need to change the setup.

Use Existing Services

The open weave of the wire allows free circulation of air, light, and fire suppression systems, without compromising security in separate server storage areas.

Easy, Clean Installation

The panels easily fit together, with no need to cut or grind. This ensures there is no loose debris to contaminate the air inside the operating facility.

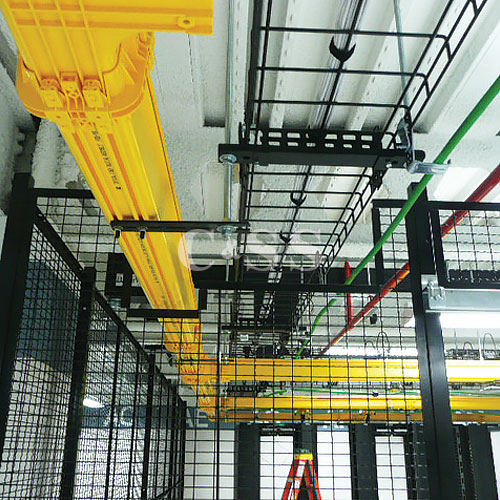

WireCrafters Server Cage

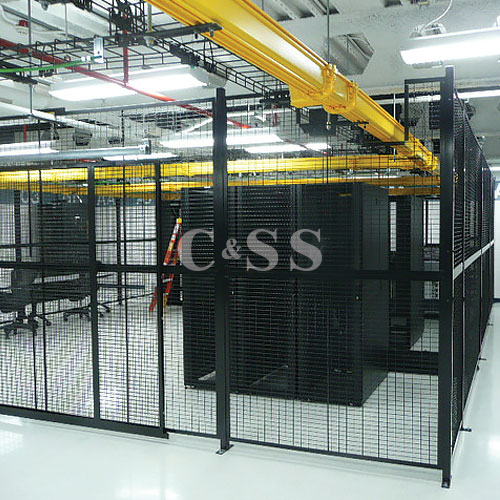

Segregating Data Center Servers

With the Style 840 Woven Wire partition system, you can separate and secure customer-specific server or network equipment without a lot of cost. The easily configurable Style 840 Server Enclosure system makes it easy to divide hosting facilities as needed. With multiple sizes and options available, almost any configuration is possible. The open, yet secure, design offers free flow of air, light, and fire suppression systems into every portion of the secure storage areas. These attractive, strong, and durable cages shows your dedication to quality and security, giving the best impression to your clients.

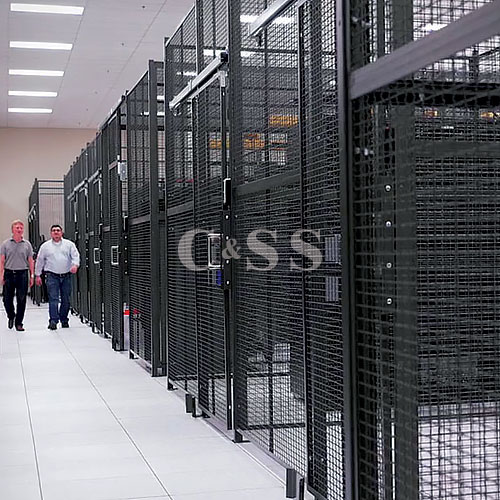

Server Colocation Enclosures

Our cages offer the ability to stack server racks side-by-side without wasting valuable space, while maintaining the highest level of security for one or more racks. These cages offer an economical, modular way to secure your network assets.

Strength and Security in Server Cages

Each server cage starts with 10-gauge wire, woven into a 1″ x 2″ rectangular mesh pattern. Each piece of wire mesh then gets framed with hot rolled angle frame, 1 1/4″ x 1 1/4″ x 1/8″. On some wire mesh partitions, a flat stiffener bar gets welded to the angle frame and wire mesh for additional security.

The completed wire mesh panels bolt directly to 2″ square, 14-gauge steel tube posts, using 3/8″ hardware. The stiff panels and strong posts make these the strongest server cages available. Each post has a welded base plate. This makes it possible to secure the cage directly to the floor with anchor bolts.

The Style 840 posts can also be secured to a data center floor, using an extra base plate and hardware. It creates a secure connection that doesn’t damage the floor. It cannot be removed without certain tools.

This server cage design places all the hardware inside the enclosure, to make it practically impossible to take apart from the outside. For additional security, we offer cage ceilings to enclose the servers completely.

WireCrafters Server Cages at C&SS

Simple and Clean Installation

Each of our panels bolt together and come in the size you order. That means there is no cutting or grinding required during installation. You won’t have to worry about debris contaminating the clean air inside your facility. The order comes with all necessary hardware.

Going Beyond the Standard Design

We offer a variety of server cage options. Hinged and sliding doors are standard. However, we also offer double-hinged doors, vertical rise doors, and motorized sliding doors. Each cage comes with a standard key lock. You can upgrade that with self-closing doors, card readers, keypad locks, finger print scanners, and more.

The cages come in eight standard colors, all powder coat applied. We can also match a custom color with a paint chip or a RAL number.


  • Twenty standard sized panels 4′-0″ or 5′-0″ high, by 1′-0″ to 10′-0″ wide.
  • Stack two or more panels between posts to reach wall height.
  • Standard size panels work in ceilings and walls.
  • Custom size panels and special heights available.
  • Hinged, double hinged, sliding, and vertical rise doors available.
  • Sliding doors have patented tamper resistant latch mechanism.
  • Angle frame design gives installer clear access to hardware, speeding installation.
  • Assembly hardware is inaccessible from the secured side of the partition.
  • Standard 3/8″ mounting hardware is the heaviest in the industry.
  • Heavy duty options available.
  • Panels may be ordered with any mesh, expanded metal, sheet metal, or clear Lexan.
