VRC Schematic Drawings

The below drawings and schematics are provided for reference and download by Warehouse Managers, Facility Designers, Architects, and Engineers. For specific product selection and application assistance, please fill out the form on the left hand side and describe the scope of work on the comment box.

Description

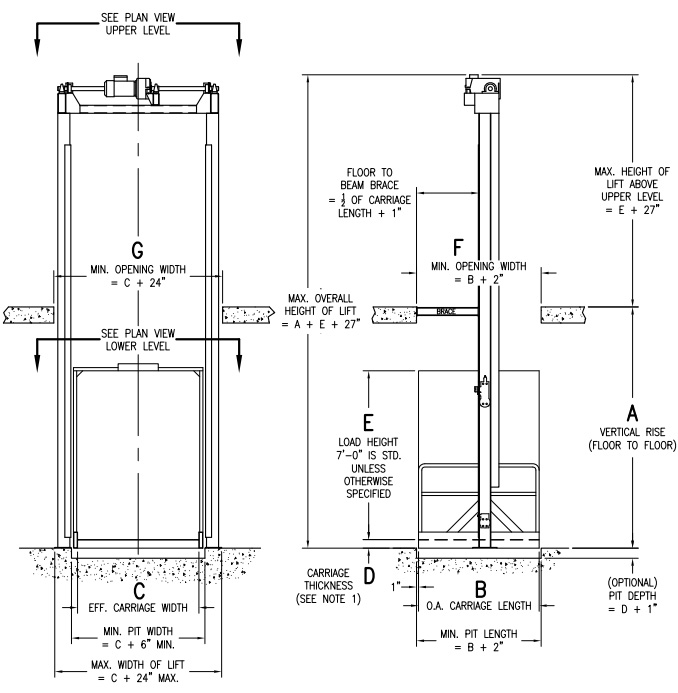

VRC Schematic Drawings, Mechanical Straddle

Conceptual dimensional VRC schematic drawings may be used to determine approximate sizes but are NOT to be used for VRC installation or construction. We provide job-specific drawings when an order is placed. Please click on the PDFs above for the other types of material lift conceptual drawings.

Features:

  • Carriage thickness is 2″ on units up to 2,000 lbs capacity.
  • If carriage is no more than 6 feet in length or width.
  • All other carriages are 4-1/4″ thick.
  • If ramp is not used, a pit can be provided.
  • For 2″ thick carriage, a 3″ pit is required.
  • For a 4-1/4″ carriage, a 5″ pit is needed.
