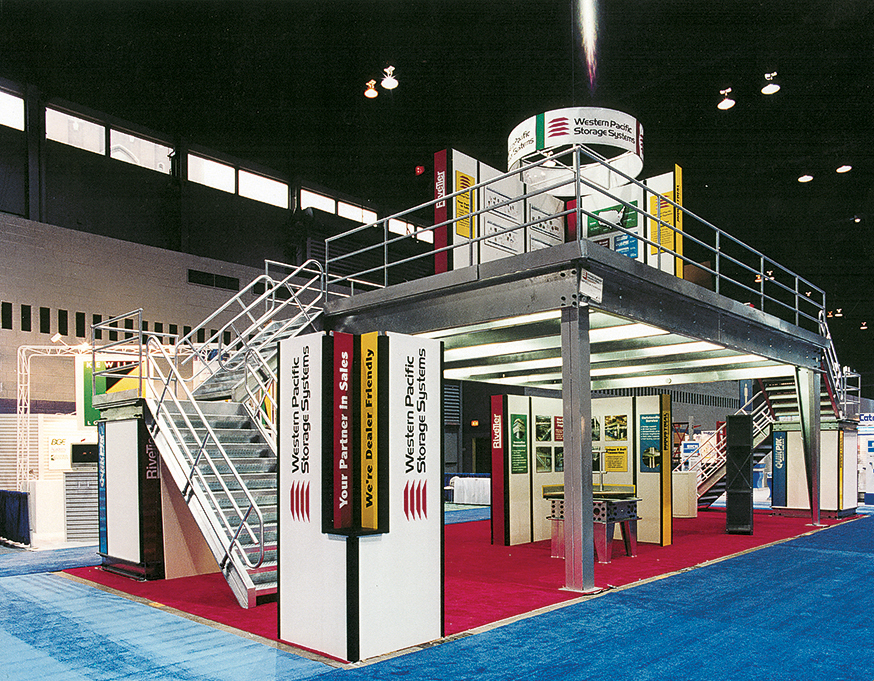

industrial solutions lead solutions

Industrial Structure Solutions Exhibit Structures

Our free-standing Exhibit Structures have long and open spans that spur reconfigurable design practice. We display our product in local San Francisco, Los Angeles, and Las Vegas.

Description

Industrial Structure Solutions Exhibit Structures

Modification for future trade shows is easy with sleek, lightweight construction. The columns of Industrial Structure Solutions Exhibit Structures are spread out more and cross-bracing is not necessary. Fewer columns minimize interrupted or camouflaged views.

Industrial Structure Solutions Brochure Platforms and Mezzanines
Industrial Structure Solutions Brochure Free Standing Mezzanines

Our free-standing exhibit structures have long and open spans that spur reconfigurable design practice. We display our product in local San Francisco, Los Angeles, and Las Vegas. The re-engineered construction methods used, meet building codes and offer considerable design cost savings.

Painted or Galvanized Rigid Frame System:

  • Cold-formed high-tensile steel framing members are Grade D, G60 galvanized ASTM A446
  • The minimum yield is 50,000 PSI

Painted or Galvanized Square Columns:

  • 9-inch square welded baseplates of at least 14 x 14 x 12 inches
  • Four 3/4-inch wedge or epoxy anchors secure the baseplates
  • For embedment and type see requirements for individual cities

Beams

  • ‘C’ or ‘Z’ shapes available in 12-, 16-, or 20-inch sizes that are typically 10 or 12 gauge
  • ASTM A490 3/4-inch HD bolts (manufacturer specified mon-galvanized) make connections

Struts

  • Standard 12-, 16-, or 20-inch size ‘C’ shapes typically 10 or 12 gauge connected using ASTM A490 HD bolts

Joists

  • 8-. 10-, 12-, 14-, 16-, and 20-inch ‘C’ shape sizes typically in 10, 12, or 14 gauge connected using 5/8-inch bolts and ‘L’ shaped clips

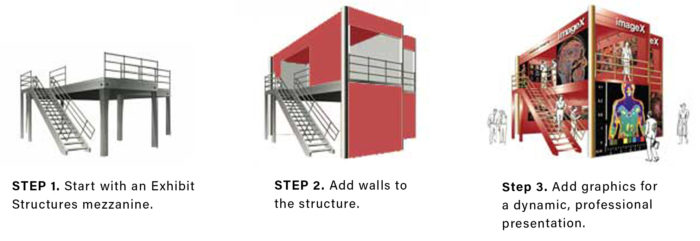

industrial structure solutions tradeshow booth

Decking Options:

B-Deck under Wood

  • 3/4- or 1 1/2-inch galvanized B-Deck in gauges 18, 20, or 22
  • Secured with #9 x 2-inch bugle Tek screws and #12 X3/4-inch Tek screws

Bar Grating

  • Standard 1 x 1/8 inch painted or galvanized grating
  • Secured by #12 x 1 3/4 inch Tek screws and galvanized saddle clips

Plank Pak

  • 2 x 9 inch nonskid galvanized surface featuring embossed dimples having traction holes
  • Secured with #12 x 3/4-inch Tek screws and j-bolts/clips

Diamond Plate

  • 1/4-, 3/16, or 1/8-inch plain, painted or galvanized diamond plate over 1 1/2-inch galvanized B-Deck
  • Secured by #8 – 32 x 1-inch truss head screws and #12 x 3/4-inch Tek screws

Concrete

  • Concrete form galvanized decking
  • Secured by #12 x 3/4-inch Tek screws
  • Form filled after installation

The Industrial Structure Solutions Exhibit Structures above provide the ideal platform for ‘over the top’ exhibits at trade shows. These flexible designs are fast to build and durable. Installation is easy because of the minimum connections and components. We add walls to exhibit structures and finish with graphics for a professional, dynamic presentation.

Additional information

Manufacturer

Industrial Structure Solutions, Western Pacific Storage Solutions

Shipping Points

California, Kentucky, Texas
