Medium Duty Starter Unit

Our Jaken line of medium to heavy duty cantilever rack is in stock, and ready to ship. This cantilever rack is the ideal heavy duty storage system for tubes, bar stock or other long materials. Available as single sided or double sided. Columns are available in 8′, 10′ or 12′ heights.


Description

Medium to Heavy Duty Cantilever Rack (Jaken)

Arms are available in 4° or 20° angles and 24″, 36″ or 48″ lengths. Purchase arm end-stops separately to provide secure and safe storage of long and/or irregular shaped merchandise.

Due to recent tariff increases on steel imports, there will be a 8-10% surcharge added to our prices. Please contact us for accurate pricing.

Width:

  • 36″
  • 48″
  • 72″
  • 96″
Height:

  • 96″
  • 120″
  • 144″
Arms 4 and 20 Degrees:

  • 24″ Long 20
  • 24″ Long HD 20
  • 36″ Long 4
  • 36″ Long HD 4
  • 36″ Long 20
  • 48″ Long 4
  • 48″ Long HD 4
  • 48″ Long HD 20
Configuration:

  • Double Sided
  • Single Sided

Jaken Distribution Centers – Warehouse Locations

We distribute Jaken Products from two distribution centers:

  • La Palma, CA 90623
  • Aurora, IL 60504

Single Sided Cantilever Rack System

2 Level System Includes 2 Columns, 4 Arms, and Brace Set

Table includes the following:

  • Above table includes 48″ wide brace set.
  • 36″, 72″, and 96″ widths are available.
  • Above table includes regular duty, 4° angle arms.
  • Heavy duty arms are available.
  • 20° angle arms are available.
  • 24″ long arms are available.

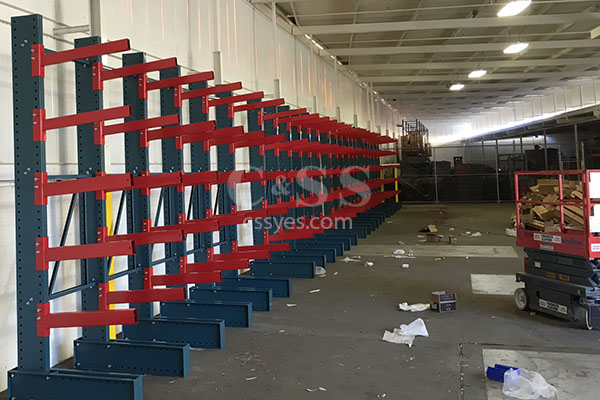

  • Here are some actual cantilever rack photos.

Heavy-Duty-Single-Sided-Cantilever-Rack-001-LG
Single sided cantilever rack system provides storage on 1 side only.

Double Sided Cantilever Rack System

2 Level System Includes 2 Columns, 8 Arms, and Brace Set

Table includes the following:

  • Above table includes 48″ wide brace set.
  • 36″, 72″, and 96″ widths are available.
  • Above table includes regular duty, 4° angle arms.
  • Heavy duty arms are available.
  • 20° angle arms are available.
  • 24″ long arms are available.

Heavy-Duty-Double-Sided-Cantilever-Rack-001-LG
Double sided cantilever rack system provides storage of materials on both sides. 20° angle arms also available for

Cantilever Components

Build Your Own System:

  • Choose arm length.
  • Choose either regular duty or heavy duty arms based on angle and weight capacity required.
  • Choose either single sided or double sided base/column.
  • Choose column height. When column serve as load stops it is necessary to specify column heights greater than the top loading arms. There is no need to pay for extra column height unless load stops are desired or future expansion is anticipated.
  • Arm height adjustable in 3″ increments.
  • Select appropriate base/column for arm length selected above.
  • Select brace set, which determines the width from center of arm to center of arm.
  • Arm end stops available separately for heavy duty.

Additional information

Weight375.04 lbs
Dimension

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Width

36", 48", 72", 96"

Depth

108.25", 39.5", 51.5", 60.25", 63.5", 84.25"

Height

120", 144", 96"

Arm

24" Long 20º, 24" Long HD 20º, 36" Long 4º, 36" Long HD 20º, 36" Long HD 4º, 48" Long 4º, 48" Long HD 20º, 48" Long HD 4º

Arm Capacity

, , , , ,

Base

, , , , ,

# of Levels

Capacity Per Unit

, ,

Configuration

Double Sided Starter Unit, Single Sided Starter Unit

Finish

Green & Orange

Lead Time

2-3 Days

Freight Class

Column

, ,

Manufacturer

Jaken
