C&SS Products

Universal Flared

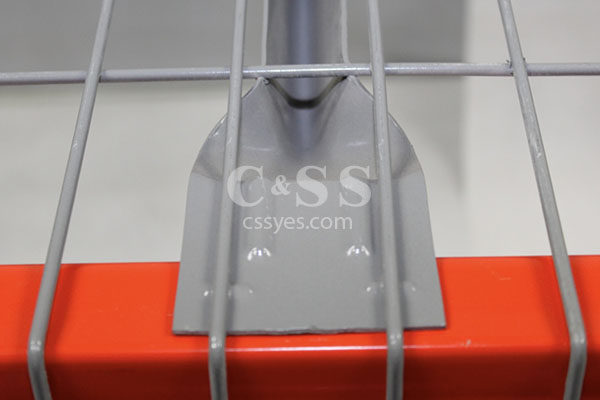

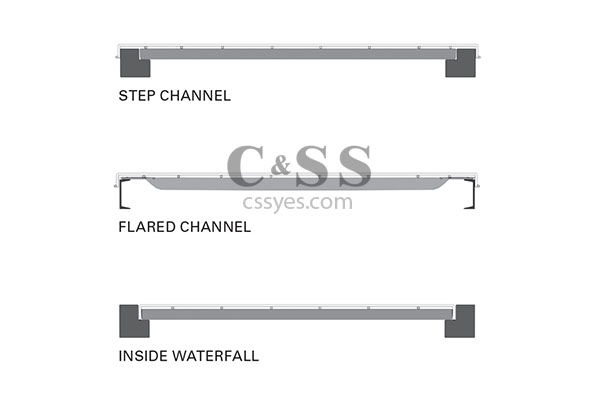

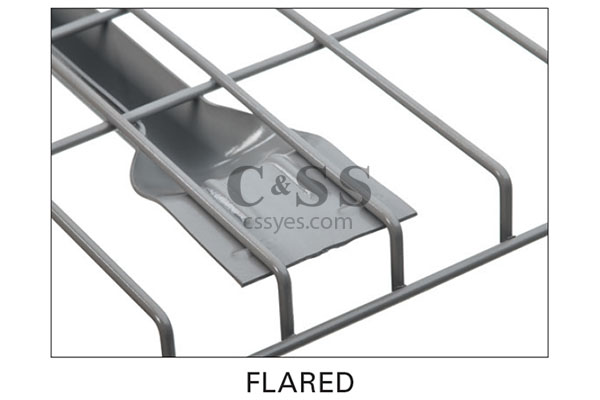

Our flared wire mesh decks offer a universal flared-end channel support, and can be used for structural channel beams, box beams, and step beams with non-standard step sizes. Flared wire decks are also known as flanged wire decks, and offer less strength than standard step decking. The flared style wire deck uses a channel with a flattened end that rest on top of the beam surface, while the step style’s channel rests on top of the step beam. Waterfall edges provide extra security.


SKU: PRWDFL-WW00201-UNV-FLARED Categories: , , ,

Description

Universal Flared Wire Mesh Decking

Click Here for How To Order Form

Standard Features and Advantages

  • Over 100,000 pieces in stock nationwide
  • Up to 2,500 lb capacity (evenly distributed load)
  • Also available in light duty and heavy duty
  • Encourages safety
  • Increase storage capacity
  • Easy installation and maintenance
  • High visibility for inventory inspection
  • Minimize dirt build-up and improve air circulation
  • Meets fire code standards and increases overhead sprinkler effectiveness

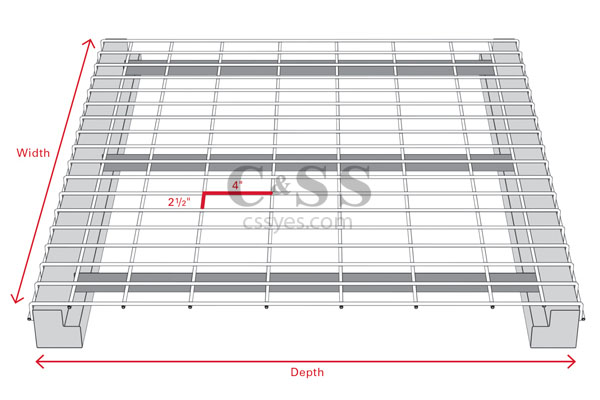

Width:

  • 46"
  • 52”
Depth:

  • 24”
  • 30”
  • 36”
  • 42”
  • 44”
  • 48”
Capacity:

  • 2,500

Finishes

A number of finishes are available. High quality powder coat finish is standard, buy you may choose from oven-baked enamel, hot-dipped galvanized, pre-galvanized, or electro-zinc plated finishes for additional weather and climate resistance. There any many option and sizes to consider when ordering wire mesh decking. To assist in our request for quote, some questions regarding you pallet rack sizes and weight capacity requirements need to be answered.

#1 Distributor and Supplier

With over 100,000 pieces of wire mesh decks in stock nationwide, we have the largest distribution and supplier network. Our complete selection of sizes and choices, allow us to offer the most competitive pricing and availability. Whether you need standard sizes, or custom designed wire mesh decks, we are your one-stop solution.

National Distribution Centers - Warehouse Locations

110 South 41st Avenue
Phoenix, CA 85009
2230 East 38th Street
Vernon, CA 90058
387 Mable T. Willis Blvd
Walterboro, SC 29488
255 South 7th Ave
City of Industry, CA 91746
602 Expansion Blvd
Port Wentworth, GA 31407
1604 County Hospital Road
Nashville, TN 37218
10727 Commerce Way, Unit C
Fontana, CA 92337
32 Forestwood Drive
Romeoville, IL 60446
725 Bill Jones Ind. Drive
Springfield, TN 37172
14420 Myford Rd, #150
Irvine, CA 92606
616 Industrial Road
Frankfort, KY 40601
12344 E Northwest Highway
Dallas, TX 75228
156 Maple Street
Ramona, CA 92065
268 West Water Street
St. Paul, MN 55107
6501 Bingle Road
Houston, TX 77092
740 S. Allen Street
San Bernardino, CA 92408
845 Markison Avenue
Columbus, OH
12953 Market Street Road
Houston, TX 77015
3838 Imperial Way, Suite 100
Stockton, CA 95215
9645 West Hills Court
Kutztown, PA 19530
2302 B Street NW
Auburn, WA 98001
1820 North MacArthur
Tracy, CA 95376
320 Deming Way
Summerville, SC 29483

How to Order Form: Wire Mesh Decking for Pallet Racks

There any many option and sizes to consider when ordering wire mesh decking. To assist in our request for quote, some questions regarding you pallet rack sizes and weight capacity requirements need to be answered. Visit our how to order form: wire mesh decking for pallet racks for easy instructions, illustrations, and quick quote form.

Additional information

Weight9.90 lbs
Weight

14.30

Width

46", 52", 58"

Depth

36", 42", 44", 48”, 60"

Capacity Per Unit

, , ,

Configuration

Flared

Wire Pattern

Gage

Deck Supports

3 (14 ga), 3 (16 ga), 4 (14 ga), 4 (16 ga)

Finish

Powder Coat Grey

Lead Time

2-3 Days

Manufacturer

ITC, Nashville Wire, WWMH
