Wire Mesh Decks

Our wiremesh decks fit a wide variety of pallet rack beam types including step beams, box beams and structural channel beams, and are also available for industrial metal shelving and boltless shelving.

Wiremesh decks are the most popular storage rack option in the warehousing industry, acts as a safety feature to help prevent pallet fall-through, and meets fire codes for high piled combustible storage. Wire mesh decking is ideal for hand stacking cartons and provides a deck shelf for storage of various product sizes and changing inventory.

Inside Flat Flush Wiremesh Decks

#1 Distributor and Supplier

With over 100,000 pieces of wire mesh decks in stock nationwide, we have the largest distribution and supplier network. Our complete selection of sizes and choices, allow us to offer the most competitive pricing and availability. Whether you need standard sizes, or custom designed wire mesh decks, we are your one-stop solution.

National Distribution Centers – Warehouse Locations

110 South 41st Avenue
Phoenix, CA 85009
2230 East 38th Street
Vernon, CA 90058
387 Mable T. Willis Blvd
Walterboro, SC 29488
255 South 7th Ave
City of Industry, CA 91746
602 Expansion Blvd
Port Wentworth, GA 31407
1604 County Hospital Road
Nashville, TN 37218
10727 Commerce Way, Unit C
Fontana, CA 92337
32 Forestwood Drive
Romeoville, IL 60446
725 Bill Jones Ind. Drive
Springfield, TN 37172
14420 Myford Rd, #150
Irvine, CA 92606
616 Industrial Road
Frankfort, KY 40601
12344 E Northwest Highway
Dallas, TX 75228
156 Maple Street
Ramona, CA 92065
268 West Water Street
St. Paul, MN 55107
6501 Bingle Road
Houston, TX 77092
740 S. Allen Street
San Bernardino, CA 92408
845 Markison Avenue
Columbus, OH
12953 Market Street Road
Houston, TX 77015
3838 Imperial Way, Suite 100
Stockton, CA 95215
9645 West Hills Court
Kutztown, PA 19530
2302 B Street NW
Auburn, WA 98001
1820 North MacArthur
Tracy, CA 95376
320 Deming Way
Summerville, SC 29483

How to Order Form: Wiremesh Decks for Pallet Racks

There anr many options and sizes to consider when ordering wiremesh decks. To assist in our request for quote, some questions regarding you pallet rack sizes and weight capacity requirements need to be answered. Visit our how to order form wiremesh decks for pallet racks for easy instructions, illustrations, and quick quote form.

Step

Standard-Step-Wire-Mesh-Decking-San-Jose-Area-001-MED

Standard step wire decks are designed with the channel supports resting inside the step beam, and are the most common style of deck for warehouse pallet racks.

Flared

Flared-Channel-Wire-Decking-Style-City-of-Industry-001-MED

Universal flared wire decks are designed with flanged-end channel supports, so they can rest on top of box beams, structural channel beams, and step beams.

Inside Waterfall

Inside-Waterfall-Wire-Decking-Orange-County-001-MED

Inside waterfall wire decks are designed with the channel supports resting on the step beam, have an inside waterfall, and keeps the face of the beam clear for labeling.

Flat Flush Fit

Flat-Flush-Fit-Wire-Mesh-Decking-Long-Beach-001-MED

Flat flush fit wire decks are designed with the channel supports and the wire mesh resting inside the step beam, and keep the face of the beam clear for labeling.

Inverted Step

Inverted-Step-Wire-Decking-Style-001-MED

Inverted step wire decks are designed with the channel supports inverted to help reduce debris and moisture build-up, and are used in food storage and clean rooms.

Inverted Flared

Inverted-Flared-Channel-Wire-Decking-Style-001-MED

Inverted flared wire decks are designed with the channel supports inverted to help reduce debris and moisture build-up, and are used in food storage and clean rooms.

Upturned/Reversed Waterfall

Reverse-Waterfall-Wire-Decking-Style-001-MED

Upturned reverse waterfall wire mesh deck with back stop is designed with extra wire supports upturning at the back-end. This is to completely stop pallets or boxes from falling.

Flat Deck for Shelving

Wire-Mesh-Decking-for-Shelving-Santa-Clara-County-001-MED

Flat deck for shelving is designed for industrial shelving, bulk shelving, and boltless shelving, and fit most Z-beams, single rivet beams, and double rivet beams.

Wire Deck Accessories

Wire-Mesh-Deck-Dividers-and-Accessories-001-MED

We offer a complete line of wire mesh deck hanging dividers, backstops, and flue stops. They help maintain boxes from falling off the rear of the storage racks, and organize product goods.

Shipping Wire Mesh Decks Nationwide

View Wiredecks Nationwide in a larger map

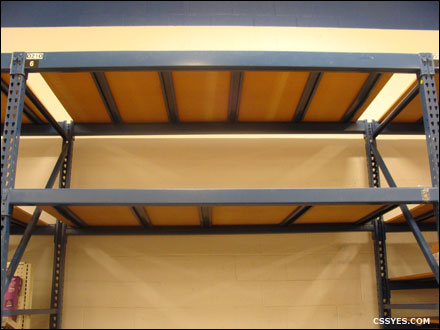

Replacing Solid Wood Decks with Wire Decking

Pallet-Support-Bars-004-LG

Based on our experience, the most common upgrade requested by local fire authority is replacing solid wood decks of any kind, with fire-approved wire mesh decking. Plywood used as solid deck on pallet rack systems can function as barrier for fire suppression sprinklers, and not meet building codes for high pile storage.

High Piled Combustible Storage

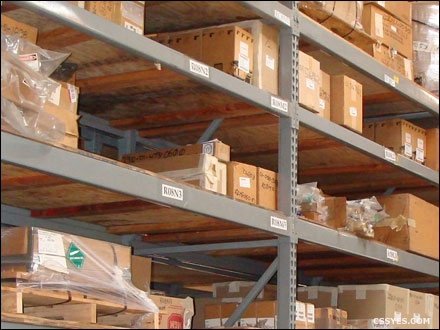

Upgrade-Pallet-Rack-From-Solid-Decks-001-LG

High pile permit is required for storage of combustible materials. An application for permit, including plans and specifications, must be submitted to the local Building Department for review and approval. Additional information must be submitted including the building floor plan with the storage rack layout, elevation of beam levels, location and classification of commodities, usable storage height, fire suppression and detection system details, sprinkler deflector height with commodity clearance, aisle sizes, egress and exit plan, and location of fire department access doors.

What Are Fire Inspectors Looking for Inside a Warehouse?

Fire-Inspector-Walk-Thru-001-LG

Fire inspectors look for many things inside a warehouse, but pallet rack decking is on top of their list. Commercial and industrial warehouse areas that use a fire suppression system, in combination with pallet rack storage systems, are required to meet local and statewide fire safety standards. Wire mesh decks with 50% openings can be a good solution for high pile storage applications.

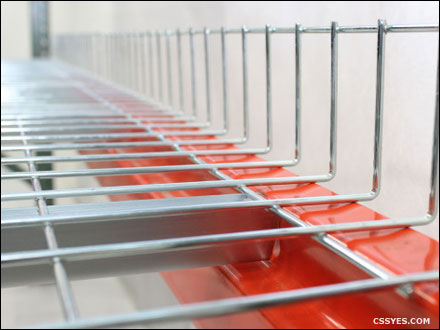

Upturned or Reversed Waterfall Wire Decking

Upturned-Waterfall-Style-Wiredecking-001-LG

Decking with the rear waterfall turned up can serve as a backstop, and prevent boxes and cartons from being pushed off the back of the rack and fall, or into the wall. When upturned reverse waterfall wire mesh deck with back stop is installed, boxes and products will become protected.

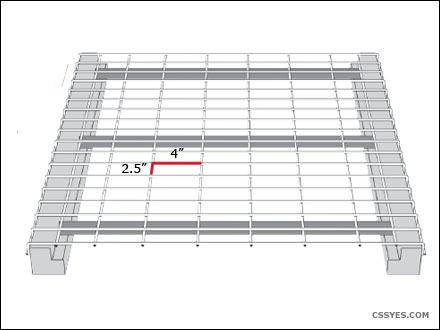

Wire Deck Design: Gage, Pattern, and Support Channels

Standard-Wire-Decking-Mesh-Pattern-001-LG

The anatomy of a wire deck consists of the wire, and the channel supports. Wire thickness and number of channel supports are considered when designing for specific applications. Load capacity, beam length, upright depth, and equipment use help determine the design requirements. The wire diameter is generally 2 gauge, 4 gauge, or 6 gauge, and constructed with a 2.5″ x 4″ wire pattern. There are typically 3 channel supports on standard deck sizes, and 4 channel supports on wider decks. Other size wire patters available below:

  • 2″ x 4″
  • 2″ x 3″
  • 4″ x 4″
  • 1″ x 4″
  • 2″ x 2″

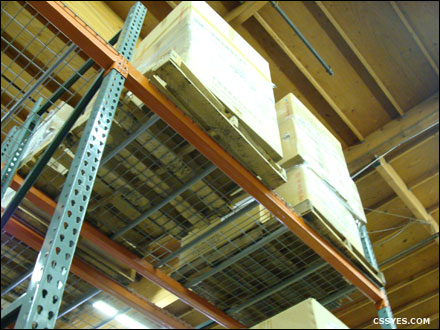

Uniformly Distributed Loads

Selective-Pallet-Rack-MW-LG-002

The strength and firmness of the wire deck is usually expressed in total deck capacity, assuming a uniformly distributed load. Therefore, point load capacities must be analyzed during the design process. For standard pallet storage, most of the pallet weight is resting on the pallet rack beams. Aligning pallet loads on a pallet rack system is important for safety, and for maximizing the deck capacity. For undersize pallet storage, and hand stacking storage, uniform distributed load needs to be satisfied.

Wire Decking for Pallet Racks

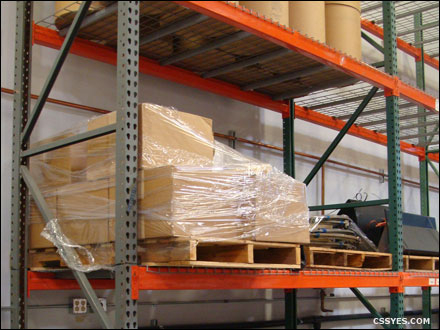

Wiremesh-Decking-Waterfall-003-LG

Galvanized wiredecks waiting to be installed on a cold storage room.
Wire decks maximize storage utilization for warehouse pallet rack, and meet high pile storage requirements of fire and building departments. This low-cost pallet rack option is available in many sizes and strengths to meet standard and custom size solutions.

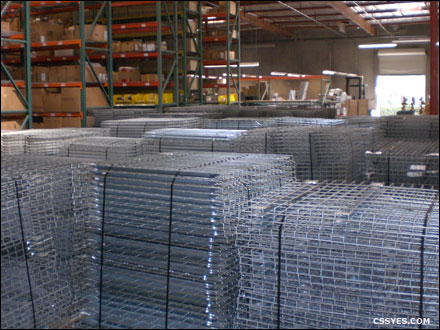

Painted and Galvanized Wire Mesh Decking

Galvanized-Wire-Mesh-Decking-001-LG

Galvanized wiredecks waiting to be installed on a cold storage room.
Warehouse cold room & freezer applications will need to be galvanized in order to avoid deterioration from liquids, salts, and other harmful elements. Outdoor storage systems can also take advantage from galvanized decking systems.

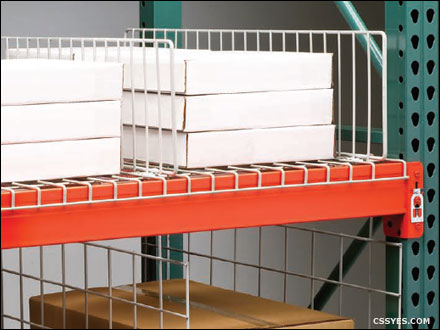

Wire Mesh Deck Hanging Dividers, Backstops, and Flue Stops

Wire-Mesh-Deck-Dividers-and-Accessories-001-LG

Wiredeck accessories can prevent boxes from falling off the racks.
We offer a complete line of wire mesh deck hanging dividers, backstops, and flue stops designed to prevent cartons and boxes from falling off the rear of the storage racks, and carton stops to maintain fire required flue spaces between items.

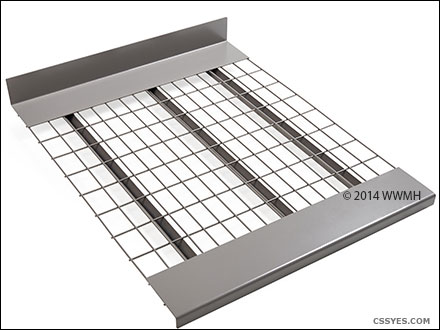

Custom Pallet Rack Wire Deck with Solid Back Stop

WorldDeck-Wire-Mesh-Shelf-001-LG

We can design specific warehouse solutions for your project.
Besides all the typical line of standard wire deck sizes and configurations, we can custom design and build wire decking for your specific project. The example above shows a solid back stop that provides both load protection and flue spacing stop between double row racks.
